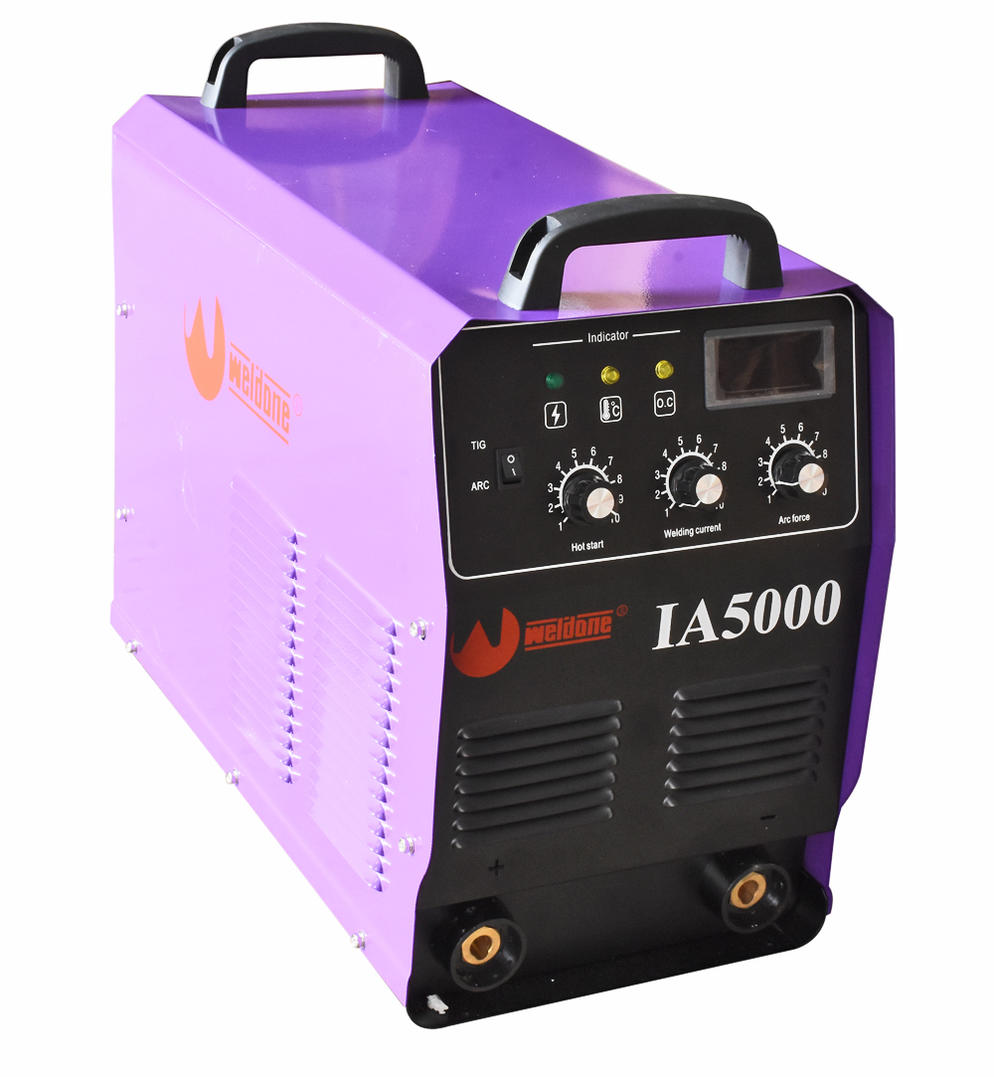

IA 5000

Description

Technical Parameter
Model    IA 5000
Input Voltage (V)    AC 415(Three Phase) ±15%
Rated Input Power Capacity (KVA)    25 KVA
Input Frequency (Hz)    50/60
No – Load Voltage (V)    67V
Output Current Range (A)    20 ~ 500
Rated Output Voltage (V)    40
Duty Cycle (25C)    60%
No – Load Loss (W)    100
Efficiency (%)    85
Power Factor (Cos Ø)    0.93
Insulation Class    F
Gross Weight (KG)    39.2KG
Overall Dimension (mm)    547 X 360 X 512
Protection Class of Case    IP23
Arc – Force Adjustment Range    -
Electrode Diameter (mm)    1.6 ~ 6
