Description

Technical Parameter

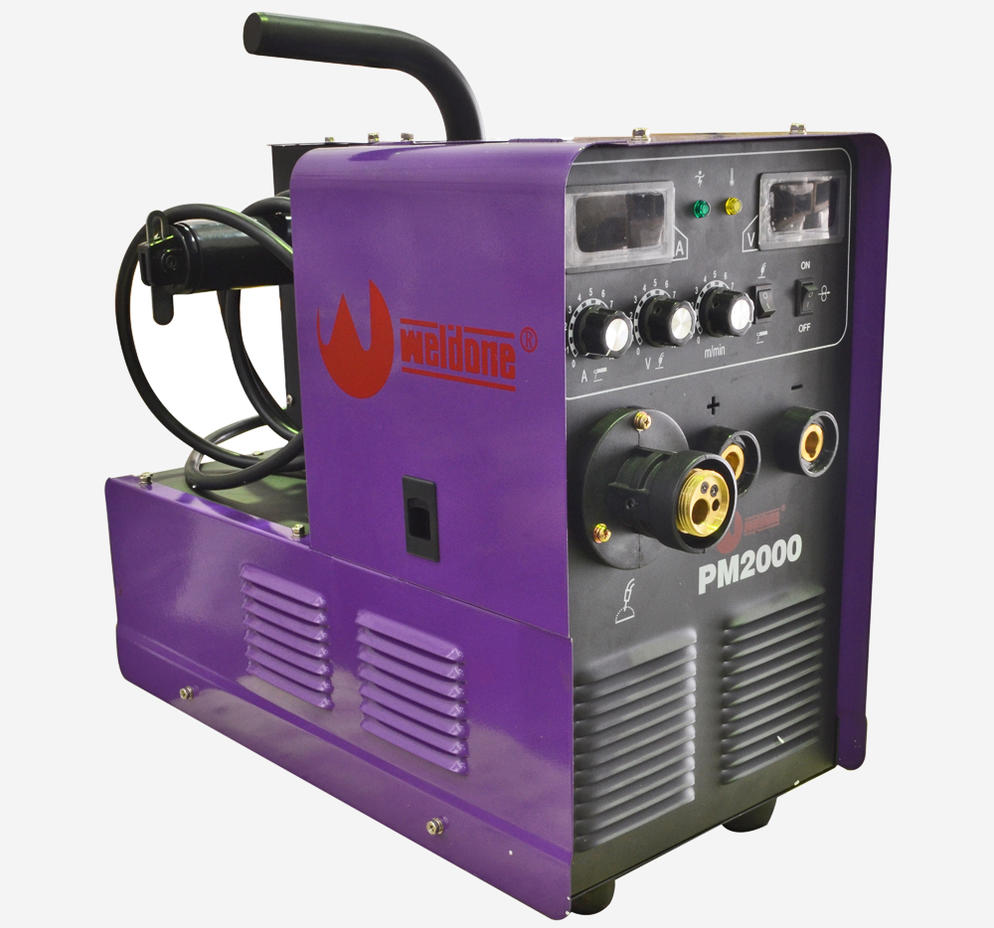

Model    PM 2000
Input Voltage (V)    AC 230(Single Phase) ±15%
Rated Input Power Capacity (KVA)    7.5 KVA
Input Frequency (Hz)    50/60
Input Current (A)    33
Output Current Range (A)    50~200
Output Voltage Adjustable Range    15~26
Rated Current Range (A)    200
Rated Output Voltage (V)    40
Duty Cycle (25C)    60%
Wire Feed Speed (m/min)    1.5~16
Efficiency (%)    85
Power Factor (Cos Ø)    0.85
Insulation Class    F
Gross Weight (KG)    25KG
Overall Dimension (mm)    500 X 263 X 430
Protection Class of Case    IP23
Work Piece Thickness (mm)    >0.8
Diameter of Wire Spool (mm)    270
