Description

Technical Parameter

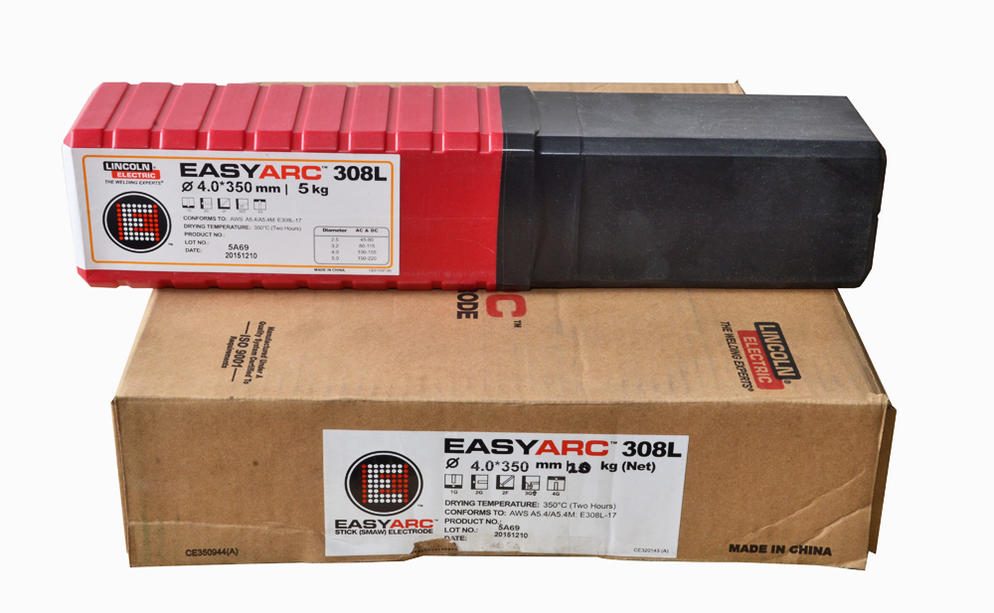

Model      EASYARC 308L
Conformance    AWS A5.4/ASME SFA 5.4:E308L-   17GB 983: E308L-17

Welding Position     1G
                                  2G
                                  2F
                                  3G
                                  4G
Diameters/Packaging (mm)    2.5x300
                                                  3.2x350
                                                  4.0x350
                                                  5.0x350
All Weld Metal Mechanical Properties – TYPICAL

• AWS E308L-17 Required
  Tensile Strength (MPA) ≥520
  Elongation (%) ≥ 35
• GB E308L-17 Required
  Tensile Strength (MPA) ≥520
  Elongation (%) ≥ 35
• EASYARC™ 308L
  Tensile Strength (MPA) 635
  Elongation (%) 49.5



All Weld Metal Chemical Compositions (WT-%) – TYPICAL

1. AWS E308L-17 Required
   C ≤0.04
   Cr 18.0-21.0
   Ni 9.0-11.0
   Mo ≤0.75
   Mn 0.5-2.5
   Si ≤1.00
   P ≤0.04
   S ≤0.03
2. GB E308L-17 Required
   C ≤0.04
   Cr 18.0-21.0
   Ni 9.0-11.0
   Mo ≤0.75
   Mn 0.5-2.5
   Si ≤1.00
   P ≤0.04
   S ≤0.03
3. EASYARC™ 308L
   C 0.02
   Cr 20.14
   Ni 9.21
   Mo 0.061
   Mn 0.71
   Si 0.85
   P 0.023
   S 0.009
   FN 6-10

Recommended Welding Current (Current Polarity: DC+ & AC)

• Welding Position: 1G,2G,2F
  2.5x300: 50-85
  3.2x350: 80-120
  4.0x350: 100-150
  5.0x350: 140-180
• Welding Position: 3G up, 4G
  2.5x300: 45-80
  3.2x350: 70-110
  4.0x350: 90-140


• *Application: 18%Cr-8%Ni Austenitic stainless steel ASTM 304, 304L, 0Cr18Ni9 or equivalent Steels
  *For electrodes that had a short or mild exposure to the atmosphere then re-drying at 300®C for 1 hour will be sufficient. For electrodes that have been exposed to longer or more aggressive conditions or for critical work redrying at 300-350®C for 1-2 hours is recommended. After redrying electrodes should be stored in a hot box.
